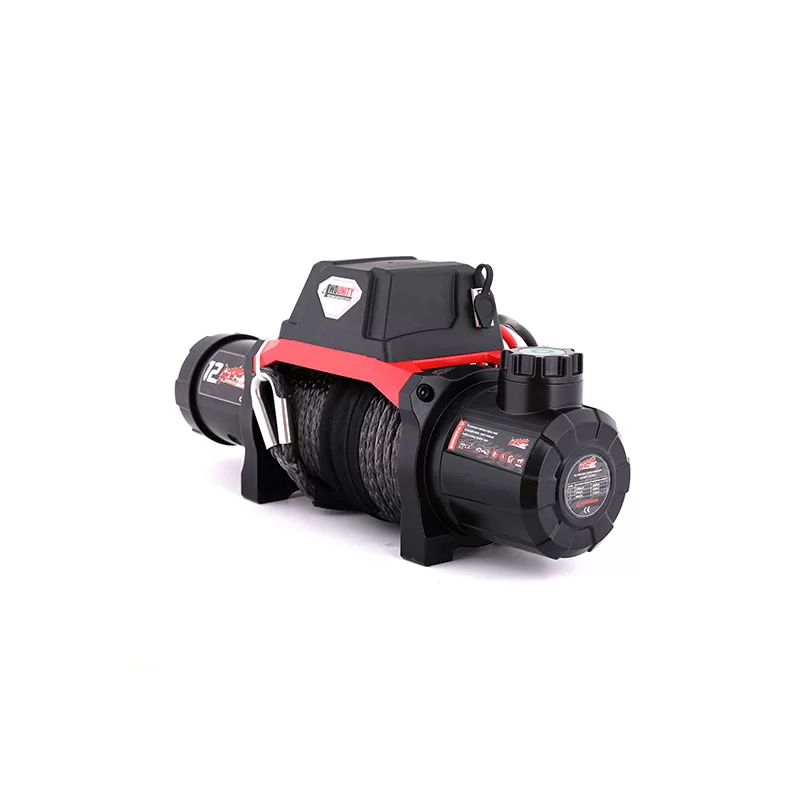

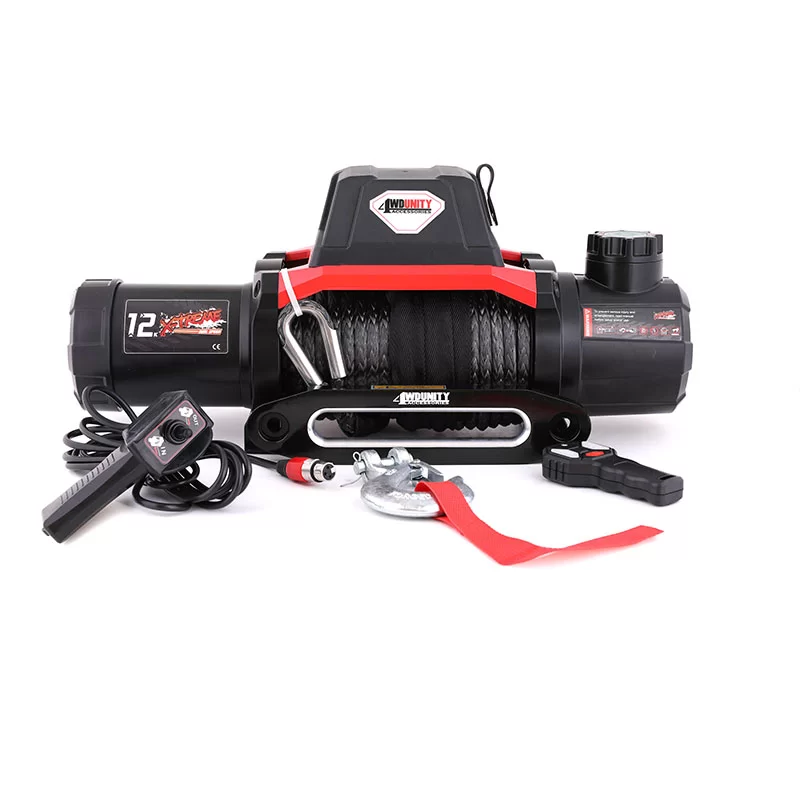

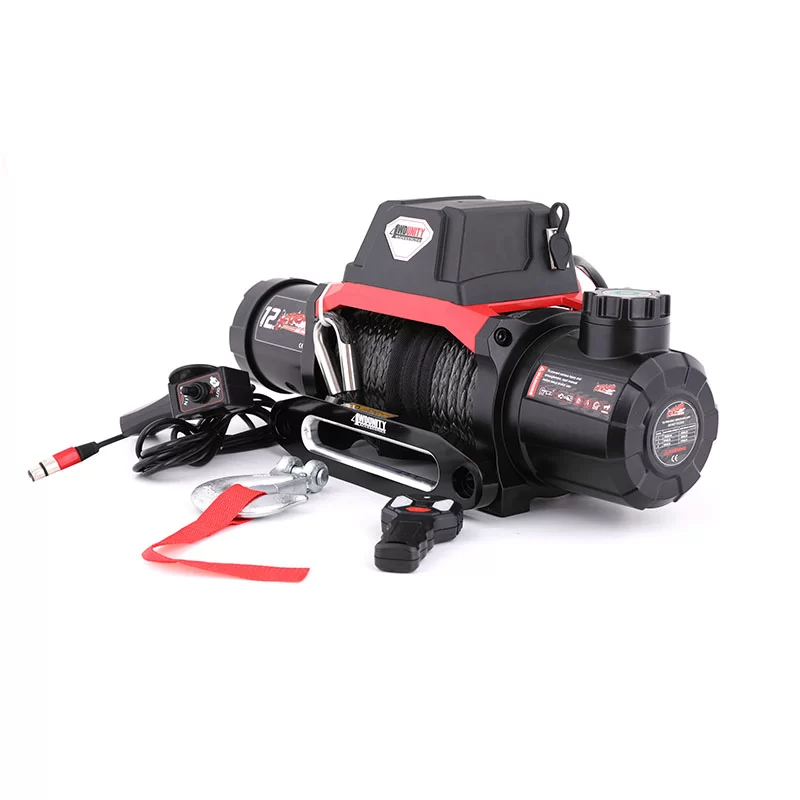

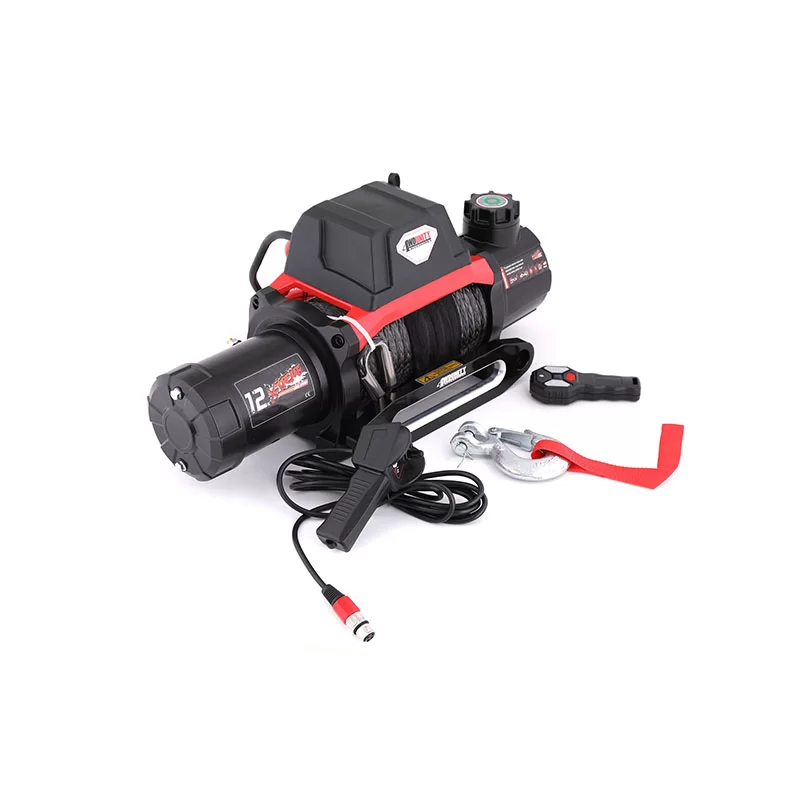

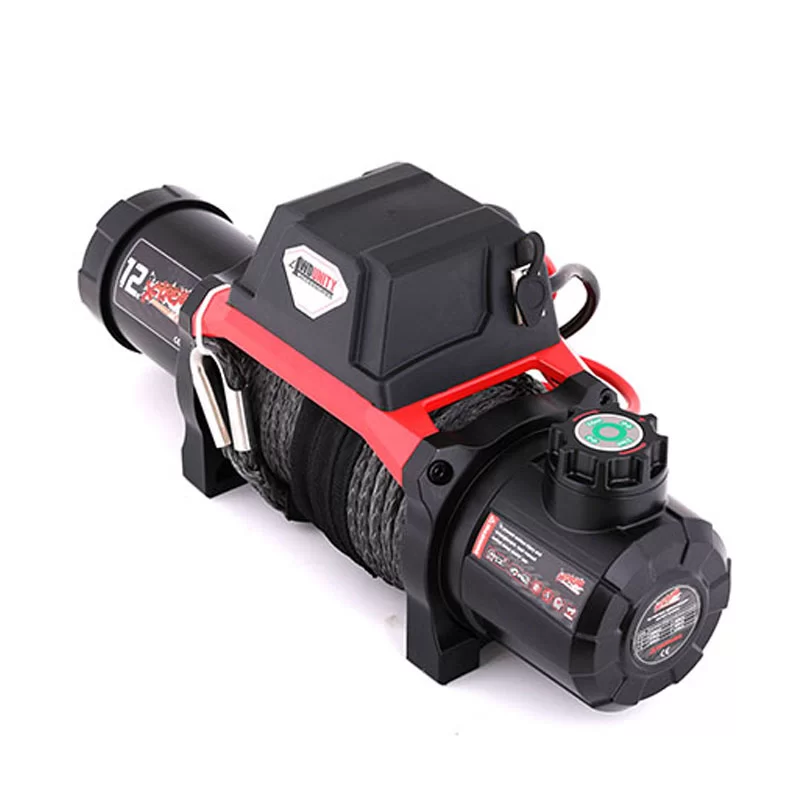

EW12000TSS
ated line pull: 5448 kg / 12,000 lb single line
Motor: 4.8 kw / 6.5hp 12V series wound
Gear ratio: 3-stage planetary 234:1
Gear ratio: 3-stage planetary 135:1
Clutch (freespooling): Rotating ring gear
Brake : patented mechanical cone brake
Winch construction: Aluminum die cast housings with steel drum
Drum size: 2.51” x 8.82” (64mm x224mm)
Rope size: 9.5 mm x 27m (3/8” x 89’)
Mounting bolts pattern: 254 x 114 mm (10” x 4.5”)
Mounting : Foot forward or foot down mounting workable
Finish: Matte black powder-coated
Box dimension, (L x W x H): 609 x 205 x 350 mm
Description
ated line pull: 5448 kg / 12,000 lb single line
Motor: 4.8 kw / 6.5hp 12V series wound
Gear ratio: 3-stage planetary 234:1
Gear ratio: 3-stage planetary 135:1
Clutch (freespooling): Rotating ring gear
Brake : patented mechanical cone brake
Winch construction: Aluminum die cast housings with steel drum
Drum size: 2.51” x 8.82” (64mm x224mm)
Rope size: 9.5 mm x 27m (3/8” x 89’)
Mounting bolts pattern: 254 x 114 mm (10” x 4.5”)
Mounting : Foot forward or foot down mounting workable
Finish: Matte black powder-coated?
Box dimension, (L x W x H): 609 x 205 x 350 mm
